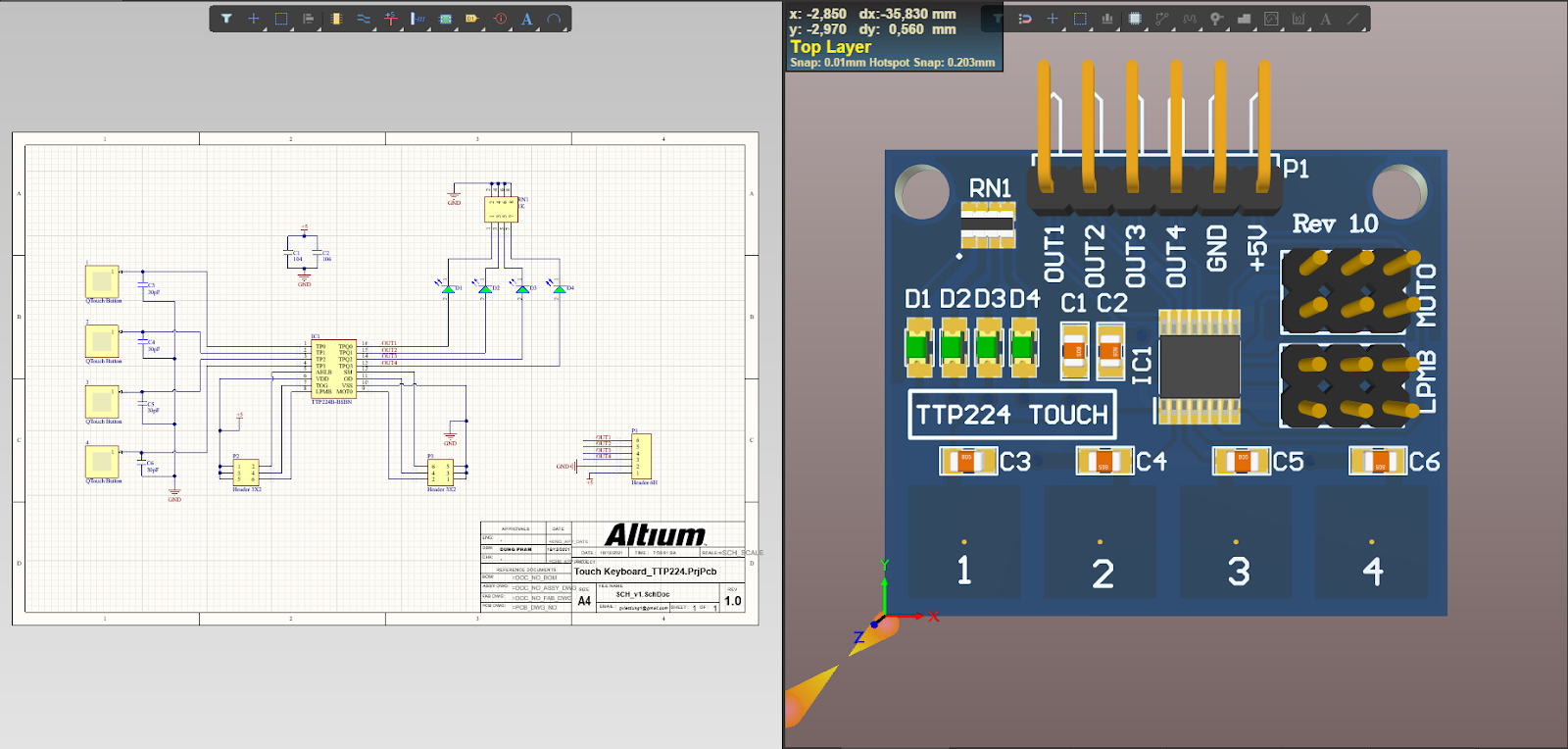

TTP224 TOUCH SENSOR IC
Features and Specifications
- Response time : 100msec-200msec
- Low Operating voltage: 2.5-5.5 Volts
- Operating current : 2.5 uA -9.0 uA
- Can adjust sensitivity externally by a capacitor (0-50pF)
- Provides a choice pin(LPMB) to select the fast or low power mode
- Select direct or toggle power mode
- Provides a choice pin to select active high or low output pin
- Make the output open-drain
- Inbuilt maximum on key time setting to return the system to the power-on state
- Inbuilt no diode protection circuit output pin(TPQ0D)
- Auto-calibration attribute of 4.0 sec if no touched is detected
- Touch stability with a stability time of 0.5sec
Data Sheet
